In this task,i was provied with 4 diodes for rectification, 2 capacitors, a voltage regulator and 2 LED's. For this circuit to work, i would need to have resistors. to get the right ones i would have to calculate the resistance at some points along the circuit.
Also provided was our lecturer's old digital clock, which would provide an AC voltage supply for the cicuit testing. a digital multi meter for measuring the volts from the input, through more points up to the output

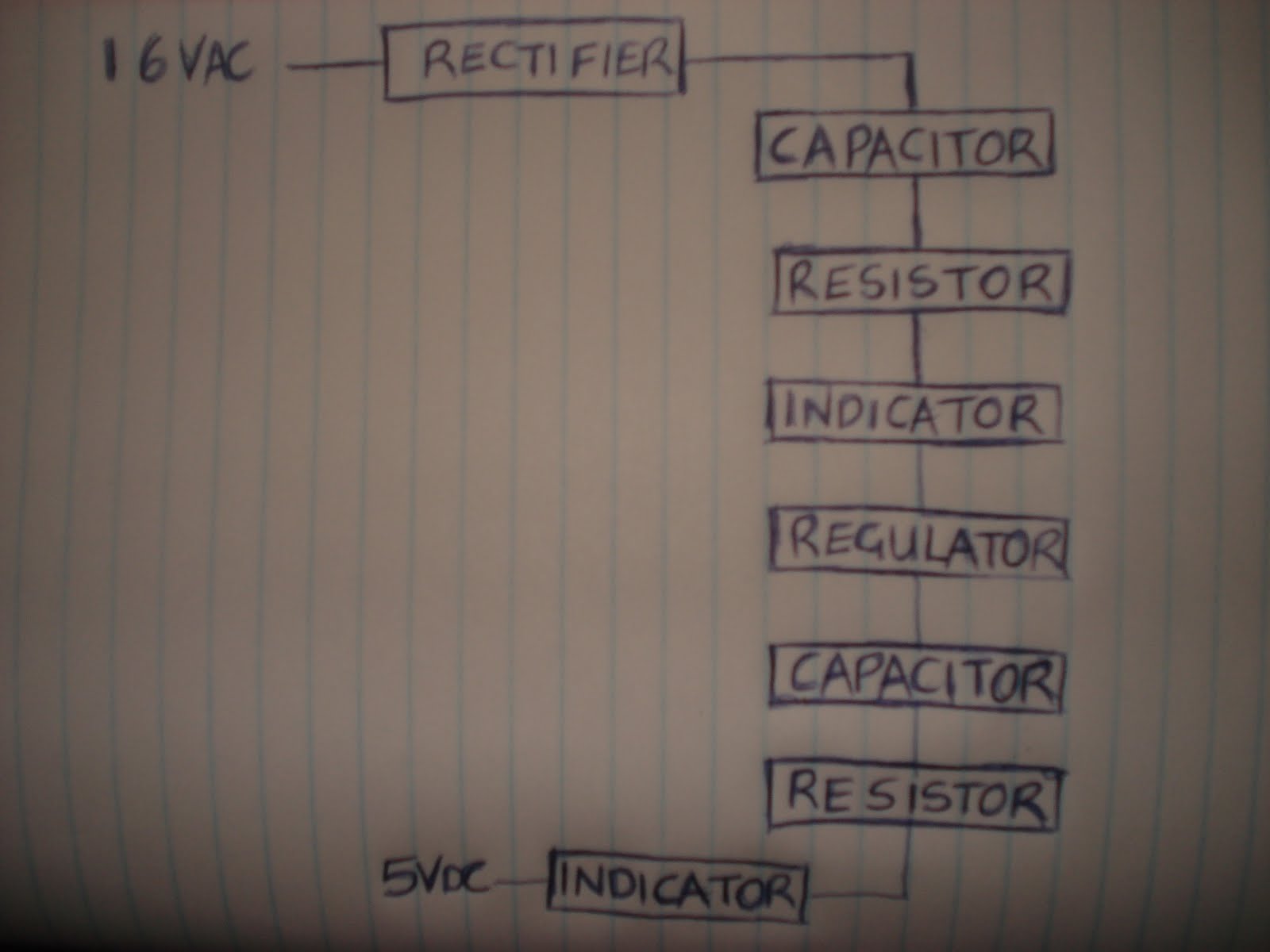

the above block diagram shows the lay out of the board.
the ac current is introduced through the recitfer(the four diodes) which converts it to a d.c current. at the first capacitor, the voltage is about 20.7V dc and on the circuit it would pass through the indicator(LED) next. since this is a to high of a voltage for it, i put a resistor. to work out the resistor the formula
R= (V-Vled) /current
(20.7-2.3)/0.02 = 0.920 ohms...therefore 1K ohms resistor.
this inturn lights up the led indicator.
the current then goes through the regulator and the next capacitor which i measured to have 5 V.
(5-2.3/0.02) = 0.135 ohms therefore 0.15K ohms resistor to which lights up the LED
With jumper cables clipped to the after of the rectifier,i connected a supply of 12V to test the circuit, and both the LED's should light up. With a multimeter set on the volts range, i put the probes by the first capacitor and the reading should be 12 Volts DC,this being after the voltage goes under rectification and is now DC from AC. The voltage regulator then regulates it to 5V, which is the output indicated by the last LED
Monday 5 September 2011
Sunday 14 August 2011
transistors
the transistor has three points,the base
the emmiter and collector.
the voltage of the emmiter is higher than that of the collector when measured
the above is two diodes i tied cathode to cathode to form a P-N-P transistor
to test transistors set the multi-meter to the diode test. a transistor is pretty much two diodes connected together anode to anode N-P-N or cathode P-N-P to cathode.so once you have established the common connection you can determine which is collector(lower voltage) and emitter(higher voltage).
Starter On car
i began by de-activating the igntion system to prevent the starter from engaging.
then i removed any surface charge that may have been on the battery by switching on the headlights to take it off.
while cranking, i checked the available voltage at the battery terminals:
then i removed any surface charge that may have been on the battery by switching on the headlights to take it off.
while cranking, i checked the available voltage at the battery terminals:
Cranking voltage spec: 9.6volts
Cranking voltage 11.47 volt
which was a pass.
- Check loss between battery positive post and solenoid starter input stud while cranking.
Spec less than 0.20 volts, Volts drop 0.18 V1 Pass
- Check loss across solenoid main input and output terminal studs while cranking.
Spec less than 0.10 volts, Volts drop 0.07 V2 Pass
- Check loss between battery negative and starter motor body while cranking.
Spec less than 0.20 volts, Volts drop 0.01 V3 Pass
- Add all the voltages drops together to find maximum voltage drop.
Maximum Allowed 0.50 volts, Total volts drop 0.26Volts Pass
below are the given instructions for the measuring the current draw of the motor. if the reading is above specification this could indicate resistance along the circuit
- Set the meter on 400 amps DC and push the Zero Button to zero the meter, if the reading doesn’t Zero push the Hold Button and repeat the procedure.
- Once the meter is Zeroed clamp the pick up around the positive battery lead anywhere between the positive terminal and the “B” terminal of the solenoid.
- Have someone crank the engine and as it is cranking push the hold button, this will retain your reading.
Starter current draw: 103.2 amps. Pass
starter off car
this assignment required me to disassemble a starter motor and test its components to check their working condition andto dismantle a starter we were given the below to follow in sequence:
- Scribe alignment marks along the two end housings and field housings (main body) of the starter motor, this will help to align the major components.
- Remove M terminal wire from the solenoid (this wire connects the output from the solenoid to the starter motor)
- Scribe alignment marks on the solenoid body and mounting then remove solenoid
- Remove any screws in the commutator end housing (failure to do this can result in major damage to the brushes or field windings).
- Remove commutator end housing
- Remove brushes as necessary to remove brush plate assembly
- Remove field coil housing (main body of the starter motor).
- Remove shift fork from drive end housing (it is important that you mark the position of the shift fork).
- Remove the armature assembly
- Remove the overrunning clutch from the shaft (clean any burrs with emery paper for easy removal of the clutch)
the next test was the Armature ground test. this is done to establish whether there is a short in the insulation which,if there is, would compromise the armature's magnetic field ,reducing or impairing the performance.If this be the case the armature would need replacement. To do this,on your multimeter select the Ohms(unit of resistance) range and
and with the multimeter probes check between each of the commutator sections and the armature core.
MANUFACTURE SPECIFICATION:InfinityTEST RESULT: 1 (on my multimeter this is equivalent)
next is the continuity circuit test. this is testing the resistance of the commutator,which should be none or low,since it makes contact with the brushes feeding electricity to the windings. if there is high resistance this would affect the function of the armature as the motor would not turn and the starter motor would not work.the armature would have to be replaced.With the Ohmmeter in the same range check continuity between one of the commutator segments while moving the second probe around on each of the other commutator segments.
TEST RESULT: Pass
Next was measuring the diameter of the commutator with Venier calipers. if the diameter was too small it would make bad contact with the brushes affecting the continuity which inturn would cause bad performance, the armature would have to be replaced.the mica undercut is to make sure there is enough space between segments and prevent shorting in the circuit and ensure there is good contact with the brushes.MANUFACTURER SPEC:26.8mm – 31mmTEST RESULT: 30mm.....pass
MICA UNDERCUT SPEC:0.7mm – 1.0mm
TEST RESULT: 0.8mm....pass
the armature shaft runout test is to check how much runout there is on the armature. if there is too much runout, it would cause poling or damage to the core or winding as it spins.To check for run-out, place the armature between the “V” blocks.Turn the armature 360° while reading the dial test indicator set up on the armature core.MANUFACTURER SPEC:0mm – 0.2mmTEST RESULTS:0.03 mm.....pass
the next test i performed was on the growler machince. to do this,- Place the armature on the “V” of the growler.
- Turn the switch on to Growler position.
- Hold a hacksaw blade or metal strip along the armature and rotate the armature.
if the hacksaw vibrated it indicated an internal short in the armature core.this means there is damage in windings insulation and the current is not passing through it.When i perfomed this test the hacksaw did not vibrate indicating no short therefore the component passed
Next test i did was for Continuity in the Field Windings..depending on the design of the motor, the windings maybe or maynot be grounded. This particular one was not grounded With the meter in the Ohms range, place the probes on the windings and get the reading. There shouldn't be too much resistance as this would interfere with the magnetic field and the coils would need replacement.MANUFACTURERS SPEC:0 – 0.02ΩTEST RESULT: 0
If the windings are grounded,this particular test would not apply. In that case the black probe of the multimeter would need to be on the starter motor body and any reading would indicate a fault.
Measure the length of the brushes and a visual inspection was next.the inspection is for wear and tear and cracks.if the brushes are too short,they would have bad contact with the commutator and this would short the circuit and drain the battery without any motion occurring.
MANUFACTURES SPEC: 5mm(new brushes 14mm)
TEST RESULT: average of 13.6 mm...pass
Then i tested the grounded insulated brushes for short circuit. this required the Ohm meter set on the lowest resistance and an open circuit result should be obtained. If not, the brush holder would need replacement as this means the commutator and armature wont get enough voltage, resulting in a bad performing starter.
INSULATED BRUSH HOLDER
MANUFACTURERS SPEC: infinity
TEST RESULTS: 1(equivalent of my meter)
The nest test was that of the solenoid,to check the pull in winding.this test checks the resistance or lack of it in the winding connections.this is done with a low voltage for five seconds to prevent heat damage.to do this i connected the battery supply terminal "s" and starter motor supply in"m" to a 9v power supply(Load tester). The amp draw was within spec. and the plunger was pulled in.
Next was the hold in test which establishes whether it can actually hold in the plunger and shows if the windings have enough resistance,too much or too little could affect the plungers action.too much and the plunger is held in longer than its supposed to by the created magnetic field and too little it would not e enough to hold it in.
To do this test, connected a power supply between the "s"terminal and the solenoid body.with my finger i pushed in the plunger and thenn applied the power. effectively the plunger should stay pulled in without me holding it in and it did.
The final test was a visual inspection of the pinion gear, bushes and clutch. the pinion gear check was for damage and smooth movement along the armature shaft and it was good by turning the pinion gear in the direction of motor rotation, the clutch should free wheel and against direct of rotation it should lock.
The bushes i checked for wear and tear which was very minimum and the clearance into the end housing.
After completing this tests i was ready to assemble the motor back together.The motor should run as before disassembling or better if repairs were needed,in my case none and it was in good working condition.
Wednesday 10 August 2011
flash codes
i used my toyota cynos 1991 for this practical and my tutor provided the manual with the flash codes. my tutor created a fault in the engine and using the check engine light flashes as an indicator i was to find the problem and fix it. the check engine light should remain on when the car is turned on and engine not running.
once engine is started and the check engine light remains on, the diagnosis system has detected and error in the system.
I opened the diagnostic plug located under the bonnet and jumped/bridged terminals E1 and TE1. Using the table below as reference, the fault code was 31( the check light flashed 3 times then 1 time).this means the was an error in the vacuum sensor circuit.My tutor had unplugged it. i pushed it back in and cleared the fault code by disconnecting the battery negative terminal for half a minute. The check engine light did not come on so i had diagnosed the fault.
once engine is started and the check engine light remains on, the diagnosis system has detected and error in the system.
I opened the diagnostic plug located under the bonnet and jumped/bridged terminals E1 and TE1. Using the table below as reference, the fault code was 31( the check light flashed 3 times then 1 time).this means the was an error in the vacuum sensor circuit.My tutor had unplugged it. i pushed it back in and cleared the fault code by disconnecting the battery negative terminal for half a minute. The check engine light did not come on so i had diagnosed the fault.
Diagnostic Fault Codes
Fault Code | Item |
1 | Normal |
2 | Vacuum Sensor Signal |
3 | Ignition Signal |
4 | Water Temperature Signal |
6 | RPM Signal |
7 | Throttle Position Sensor |
8 | Intake Air Temperature |
9 | Vehicle Speed Sensor |
10 | Starter Signal |
11 | Air Conditioner Switch |
12 | G, NE Signal Circuit |
13 | NE Signal Circuit |
14 | Ignition Circuit |
16 | ECT Control Signal |
21 | Oxygen Sensor Circuit |
22 | Water Temperature Circuit |
24 | Intake Air Temperature Circuit |
25 | Air – Fuel Ratio Lean Malfunction |
31 | Vacuum Sensor Circuit |
33 | Idle Speed Control System |
41 | Throttle Position Sensor Circuit |
Monday 8 August 2011
transmission(manual front wheel and automatic)
A manual transmission allow the vehicles driver to operate at the engines most efficient speed range.using a gear lever,the driver can select the suitable engine torque, i.e a lower gear for increase load requirement or higher gear for less or higher speed ranges as well as neutral to disengage drive and a reverse gear. the gear shafts have bearings on each end to support and ensure free movement of the parts.
the transmission parts are lubricated at all times as high friction occurs when operating.the viscosity changes depending on the engine type or manufacturer specs.
above is the reverse-idler gear which is a straight-tooth spur gear type.when engaged by the countershaft reverse gear, this gear reverses the motion of the drives rotation in this case the ring gear for a front wheel driveabove is the open gear box, 5 speed i.e it has five drive gears plus a reverse gear which i had taken out.this came out of a front wheel drive so the output shaft drives the ring gear which makes up the transaxle.
the gear type is helical.these are strong and durable aswell as quiet with a moderate cost so they are the preferred type of most manufacturers.
i pulled out the input and output shaft as above, and counted the teeth of the gears to find the torque ratio of the gears(numerical speed ratio). the formula for finding gear ratio is driven gear teeth divided by driving gear teeth, the answer being driven:driving
1st gear 39/11= 3.55:1
2nd gear 40/21= 1.904:1
3rd gear 38/29= 1.310:1
4th gear 32/33= 0.097:1
5th gear 31/38= 0.82:1
the above side view of the ring gear shows the differential. In a front wheel drive it is intergrated into the gear box,a section referred to as the transaxle. the differential distributes the torque threeways, that if from the ring gears rotation through the differential both sides of the drive shafts rotate, turning the wheels.
below are the selector rails with their shift forks.the gear lever/gear stick controls the selection of the gears with the use of rod cables or direct coupling with the selector rails or rods which inturn move the selector forks,they are attached to the rails by lock pins or bolts
AUTOMATIC TRANSMISSION
the gears are shifted automatically depending on the load requirement and or vehicle speed.its consists of a torque converter,hydraulic system and mechanical gear ratio and operating system.
Torque convertor.
Tuesday 7 June 2011
PRIMARY AND SECONDARY IGNITION PATTERNS
we used an ignition oscilloscope to view the ignition primary and secondary patterns.with this, we could get the firing voltage, burn voltage burn time and dwell times for one or all of the cylinders.
primary patterns and secondary patterns have similar waveforms the difference being in the voltages.
from this screen we can get the height of the Firing KV which is how big a gap the spark has to jump(spark plug gap)
Above is a video of the primary waveforms followed by Burn time graph.
Burn time measures how long the spark is flowing along the spark plug
when accelerated, the graphs where higher and firing voltage was higher than at idle
primary patterns and secondary patterns have similar waveforms the difference being in the voltages.
from this screen we can get the height of the Firing KV which is how big a gap the spark has to jump(spark plug gap)
mirrors the spike that was created to jump across the spark plug gap.
Above is a video of the primary waveforms followed by Burn time graph.
Burn time measures how long the spark is flowing along the spark plug
Secondary Waveforms Clip. this test was perform with a spark tester plug installed on cylinder 3 lead.as you will notice the graph with for number three is higher indicating the higher output it has to fire the bigger gap
and heres thie KV bar graph
when accelerated, the graphs where higher and firing voltage was higher than at idle
Wednesday 25 May 2011
Testing Ignition Systems
As required i did all the pre-proceedure tests i.e checking the oil levels through the dipstick located in the engine, the coolant level, the fuel(fuel gauge ofcourse) and the battery condition.
Battery test: Unloaded:12.33Volts.... Cranking:1.05 Volts.... Recovery:12.39 Volts
I carried out a continuity test on the High Tension leads.On inspection, two of the High Tension leads to spark plugs 1 and 3 had faults. Lead 1 had no reading when i did a continuity test on the leads,indicating a short and lead 3's wire had worn out, so they needed replacement to ensure efficiency. The other two passed with resistances of 15KΩ and 14KΩ. this is crucial as the secondary side of the ignition system carries a very high voltage.
The distributor check revealed that the contact points in the distrubutor cap had worn out and this was causing bad contact that resulted in misfiring in the engine. The rotor's contact effectively had worn out so i got a new distributor cap and rotor as replacements to fix the problem.
The following video is of me testing the king lead with a spark connected to it directly and measured with a multimeter set to volts,obtaining a reading of 11.58V. this cleared as in good working condition
I then removed the spark plugs with from the cylinder to check the condition visually.it is important to remember to the order in which they came out for when re-fitting them back.By inspecting the condition and colour of the electrodes of the spark plug, the condition of the combustion burning can be determined
the above link is to a chart similar to the one i used to cross reference the spark plugs condition and they were in good working condition so i refitted them as i had taken them out.
Checking The Timing
with help from my class mate,i used a timing light to check the intial timing,looking at the T.D.C timing marks. the light is clamped to spark plug number 1 lead and the battery, while engine is running.It is pointed to the crank pully,as the firing of sparkplug 1 and the crankshaftpulley timing marks are related.Gradually increasing the engines R.P.M's until the timing marks advance from the intial timing mark,till it reaches its maximum advance and return it to normal idle.the number of degrees it moves from initial to maximum is the degree of mechanical advance.if the timing off,to adjust you loosen the distributor clamp so you are able to move it.Turning the distributor clockwise retards the spark; turning it counterclockwise advances the spark. then increase the R.P.M's again then watch the marks on the crankshaft with strobe light.The markin should advance,then turn the distributor to the spec maximum degree advance.return the engine to idle and then shut the engine off and tighten the distributor,the timing should be adjusted after this proceedure.
OFF CAR IGNITION
i measure six high tension cables for their length and their resistance.
33 | 56.5 | 57.5 | 67 | 82 | 94 | Length in CM’s |
12Kohms | 13Kohms | 14Kohms | 15Kohms | 15Kohms |
15Kohms | Measured Resistance |
No faults | No faults | No faults | No faults | No faults | No faults | Visual Inspection |
p | p | p | p | p | p | Pass or Fail |
Next was to check the ignition coils.below is the results for the two coils i measured.following that is the video of the coil circuit with a switch and another one with the distributor connected. the last video simulates the events in the ignition system on car as the distributor passes on the charge to the spark plugs.
Coil Specifications:
1st Coil Part Number …f-088 2nd Coil Part Number 16c6..
1st Coil Voltage …12V.……………….. 2nd Coil Voltage …6V….………………..
1st Coil Primary Ω ….……………….. 2nd Coil Primary Ω ….…1.4Ω …..
1st Coil Secondary Ω ……………….. 2nd Coil Secondary Ω ……7.54KΩ
off car i tested an ignition coil with a ballast resistor and high tension lead with a spark plug connected.
the spark of the plug would indicate the coil working.
i also tested the ballasts' resistance and it was 1.4 Ω
VACUUM ADVANCE TEST
the following videos are of the vacuum test i did off car.
Tuesday 24 May 2011
Alternator Testing
I took apart an alternator today to test and repair it. to dismantle the alternator, i removed the "B" nut and insulator and the nuts off the cover exposing the brush holder, voltage regulator and rectifier which i unscrewed and took off to perform the tests.
First test was the rotor winding earth leakage test. with a multi meter,set for 20M Ohms range, i put the positive on the slip ring and negative on the rotor shaft and got a readin of 1 (or infinity) which is a pass.
Following that was a rotor winding continuity test. with the meter on 2 Ohms range with both leads on the slip ring with an actual resistance of 2.8 Ohms,which is a pass.
On the same Ohms range, i measured the stator earth leakage. Placing the black lead on the common terminal of the stator winding,i measure the other 3 windings one after the other, all having a resistance of 0.1 Ohms. After was the stator winding earth leakage test,placing the red lead on the common terminal and measuring the other 3 with the black lead. To pass it had to read infinity on the meter,which it did.
below is the alternators rectifier. in diode test mode,the common lead goes to the B terminal with the positive touching each of the P diodes for a reading of 0.5V .with the leads reverse it was 1(infinity)
with the common lead on the E terminal ,the red touchin each of the P diodes the reading was 1
with the leads reversed it was 0.7 V
the voltage regulator
TESTING ON CAR
TOYOTA CYNOS 1992.
Required for this are...high rate discharger , digital multimeter and an inductive clamp ammeter.
Preliminary checks i did was to ensure the ignition system was disconnected to ensure the car would start,a visual inspection of the connections and warning lights were functioning properly.
No Load Test
Battery Open Circuit Voltage - 12.69 Volts
Voltage Regulator Spec( Toyota Cynos) - 14.5 Volts
Voltage Regulator Reading under load - 14.3 Volts
First test was the rotor winding earth leakage test. with a multi meter,set for 20M Ohms range, i put the positive on the slip ring and negative on the rotor shaft and got a readin of 1 (or infinity) which is a pass.
Following that was a rotor winding continuity test. with the meter on 2 Ohms range with both leads on the slip ring with an actual resistance of 2.8 Ohms,which is a pass.
On the same Ohms range, i measured the stator earth leakage. Placing the black lead on the common terminal of the stator winding,i measure the other 3 windings one after the other, all having a resistance of 0.1 Ohms. After was the stator winding earth leakage test,placing the red lead on the common terminal and measuring the other 3 with the black lead. To pass it had to read infinity on the meter,which it did.
with the common lead on the E terminal ,the red touchin each of the P diodes the reading was 1
with the leads reversed it was 0.7 V
the voltage regulator
for this test i had to match the regulator type in the manual for testing regulators. Using a transpo regulator
tester, i obtained the following results : in field setting A at a voltage of 12, the set point was 14.5V.
Below is a stator winding earth leakage test followed by a stator earth leakage test.
TEST SCHEDULE AND REPORT SHEET
- Using the vernier calipers supplied check the length of brush protrusion at the centre of the brush holder.
Minimum allowable length 5mm
Actual length 6mm Pass
- Check the condition of the rotor by carrying out following checks
Rotor winding to ground test1 Pass
Rotor winding internal resistance test 2 Pass
- Stator winding internal resistance test Reading……0.1…… Pass
Reading……0.1…… Pass
Reading……0.1…… Pass
4. Check stator for grounding Reading…0.1……… Pass
5. Check bearing condition (Noisy or Quiet)
Front …quiet……….. Pass
Rear…quiet………… Pass
- heck operation of the regulator Fig 7
Set point……12……… Volts
Reading 14.5 Pass
Short Circuit Light MUST BE OFF Pass l
Large red light should come on and stay on Pass
Small red field light should flash continuously Pass
- Check the diodes in the rectifier
Positive Bank
Common Lead on “B” (1) ......0.5.V............. (2) ..0.5..V................
(3) .....0.5.V.............. (4) ....0.5..V..............
Positive Lead on “B” (1) ......1.............. (2) ..........1..........
(3) .......1............. (4) ............1........
Pass
Negative Bank Common Lead on “E” (1) ........1............ (2) .....1...............
(3) ........1........... (4) ......1..............
Positive Lead on “E” (1) .........0.5........... (2) .......0.5.............
(3) ..........0.5.......... (4) .......0.5.............
Pass
TESTING ON CAR
TOYOTA CYNOS 1992.
Required for this are...high rate discharger , digital multimeter and an inductive clamp ammeter.
Preliminary checks i did was to ensure the ignition system was disconnected to ensure the car would start,a visual inspection of the connections and warning lights were functioning properly.
No Load Test
Battery Open Circuit Voltage - 12.69 Volts
Voltage Regulator Spec( Toyota Cynos) - 14.5 Volts
Voltage Regulator Reading under load - 14.3 Volts
No load Amps output :
used a Clamp Ammeter ,clamped over either the positive or negative terminals
Carburettor..... 5 to 12amps
Fuel Injected .....10 to 18amps
Reading..... 14 Amps which is a pass
Subscribe to:
Posts (Atom)
